Amano Ticket Dimensions: Exact Specs for Parking Operators

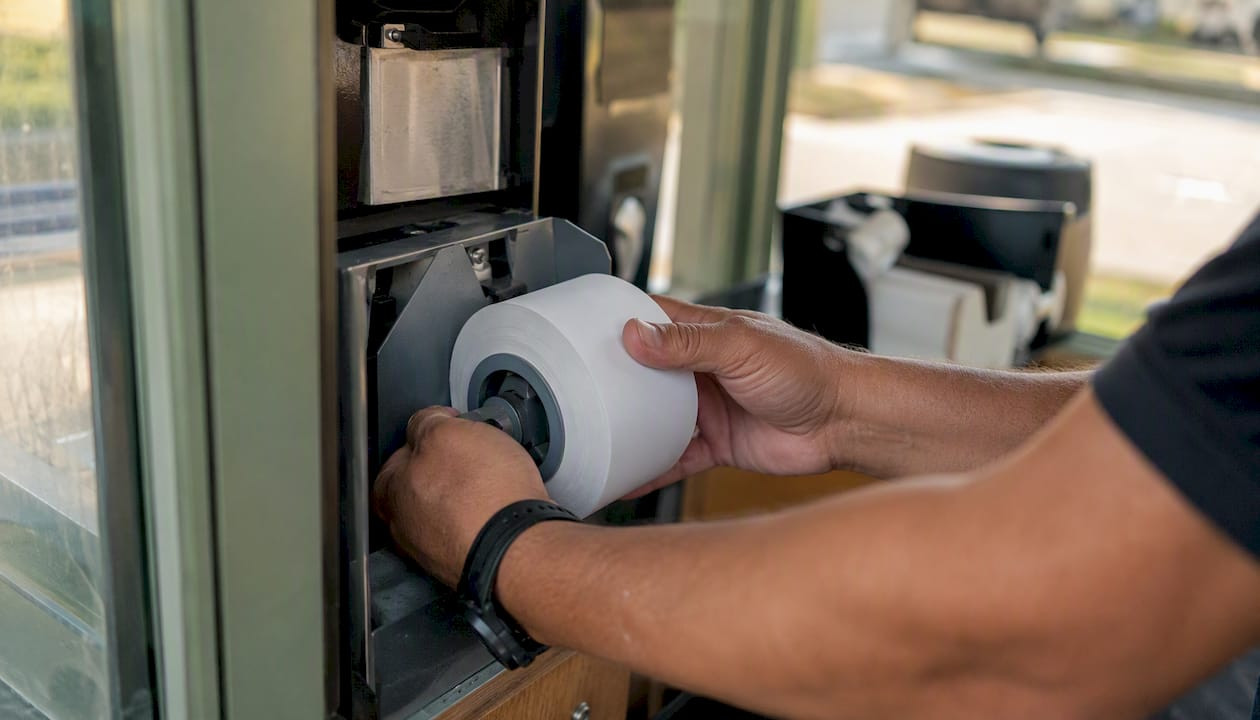

Hands loading Amano ticket roll onto dispenser

The canonical Amano ticket size is 2 1/8" (54 mm) wide × 3 3/8" (85 mm) long × .007" (.188 mm) thick, as documented in the Amano AGP-2000 Series specifications. That single set of numbers covers the majority of Amano ONE and AGP-2000 series machines in active use across U.S. parking facilities. Before ordering replacement stock or loading a new carton, confirm all three measurements against your specific model’s manual.

Quick-reference amano ticket dimensions:

  • Ticket width: 2 1/8" (54 mm)
  • Ticket length: 3 3/8" (85 mm)
  • Ticket thickness: .007" (.188 mm)
  • Standard carton count: 5,000 tickets per carton
  • Core (spindle) bore: typically 1" inner diameter — verify against your dispenser spindle
  • Maximum roll outer diameter: check your dispenser housing; most Amano units accept up to 5" OD

Pro Tip: Before placing any order, physically measure your current ticket stock with digital calipers. Width and thickness tolerances are tight enough that a .5 mm variance in width can cause chronic misfeeds in high-speed Amano dispensers.

Key Takeaways

The canonical Amano ticket size is 2 1/8" × 3 3/8" × .007" thick, with a 1" core inner diameter, and confirming all three measurements before ordering prevents the majority of dispenser jams and scan failures.

Point Details
Canonical ticket size 2 1/8" (54 mm) wide × 3 3/8" (85 mm) long × .007" (.188 mm) thick per Amano AGP-2000 specs.
Core inner diameter Standard 1" (25.4 mm) spindle bore; measure your machine’s spindle directly before ordering.
Thickness tolerance Accept stock between .006" and .008"; anything outside that range risks jams as the dispenser warms.
Measure before ordering Use digital calipers on width, length, thickness, and core bore; compare to your model’s service manual.
Caymil supplier step Request a dimensional sample from Caymil before approving a full 5,000-count carton run.

Table of Contents

What are the exact Amano ticket dimensions and roll specs?

The Amano AGP-2000 Series datasheet lists the standard ticket at 2 1/8" wide × 3 3/8" long × .007" thick and specifies a standard carton count consistent with Amano’s packaging practices. That carton count is a useful cross-check when evaluating supplier quotes: a carton delivering significantly fewer tickets at the same stated size likely reflects a different roll length or a non-standard cut.

Ticket dimensions and tolerances

Dimension Imperial Metric Tolerance
Ticket width 2 1/8" 54 mm ±0.5 mm
Ticket length 3 3/8" 85 mm ±0.5 mm
Ticket thickness .007" .188 mm ±.001"
Roll width 2 1/8" 54 mm ±0.5 mm
Core inner diameter 1" 25.4 mm ±0.5 mm
Max roll outer diameter ~5" ~127 mm per housing

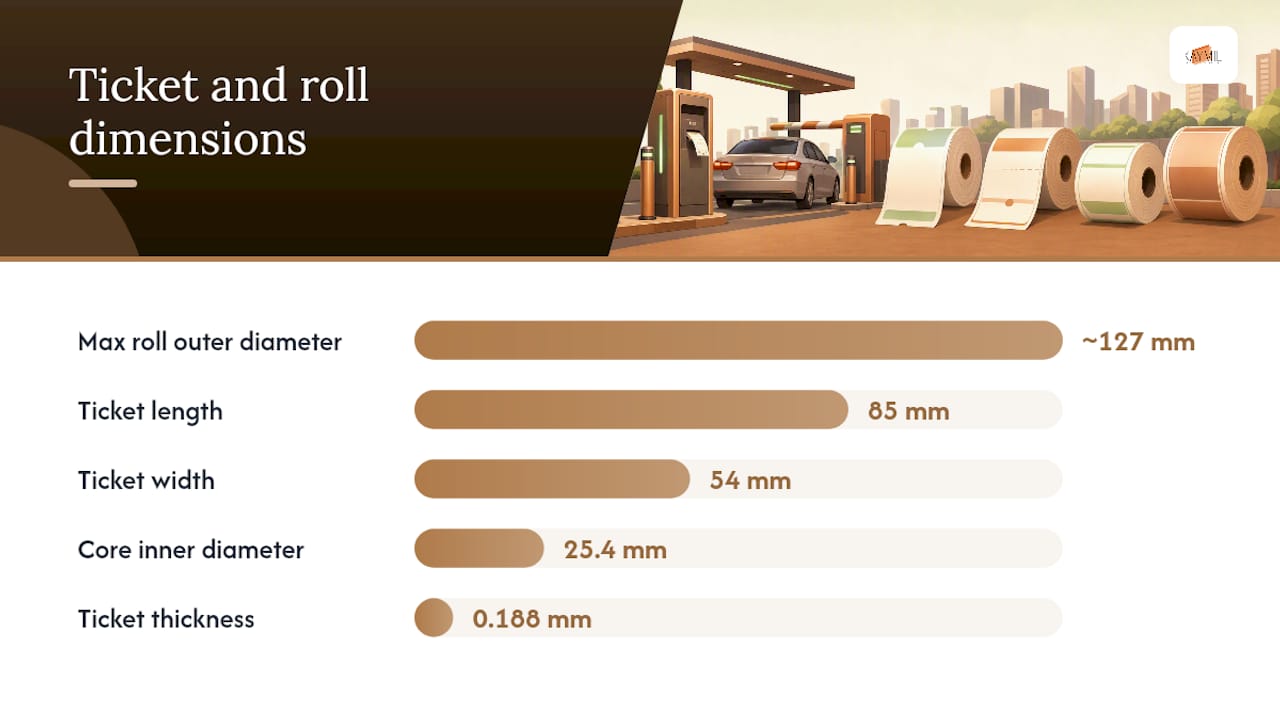

Diagram of Amano ticket and roll dimension tolerances

Ticket width and roll width are the same measurement in practice: the roll is cut to the ticket width, so a 2 1/8" ticket comes from a 2.125" roll. The core inner diameter matters because it must slide onto the dispenser spindle without binding or wobbling. A core that is too tight will resist loading; one that is too loose causes lateral drift and misfeeds.

Typical roll footage varies by paper thickness. At .007" stock, a standard roll yields roughly 200–250 feet of usable media before the core becomes exposed. Maximum roll outer diameter is a housing constraint, not a paper spec, so always check your specific Amano model’s dispenser cavity before ordering high-yardage rolls.

Which paper types work best in Amano machines?

Amano dispensers accept both thermal ticket stock and bond/offset paper, but the two behave very differently in the machine and in the field.

  • Thermal stock: No ink ribbon required. The coating activates under the printhead’s heat, producing sharp black print. Thermal tickets are standard for most Amano ONE and AGP-2000 installations because they reduce consumable costs and maintenance. The tradeoff: thermal coatings are sensitive to prolonged heat, direct sunlight, and certain solvents, which can cause premature fading.
  • Bond/offset paper: More durable for long-term record retention and resistant to heat and UV. Requires an ink ribbon or impact printing mechanism. Useful in facilities that archive physical tickets for audit purposes.

Ticket thickness of .007" (.188 mm) is the standard for Amano machines. Stock thinner than .006" tends to crumple at the dispenser throat; stock thicker than .008" can jam the feed mechanism. A matte finish is generally preferred over high-gloss coatings, which can cause static buildup and stacking issues inside the hopper.

For facilities using automated barcode readers, print contrast is critical. Consistent print area and barcode placement directly affect read reliability — a point reinforced by guidance on AI document scanning for small-format media. A barcode printed too close to the ticket edge or in a low-contrast area will produce read failures even when the ticket dimensions are correct.

Pro Tip: Request a thermal stock sample with a test barcode before committing to a full carton. Run it through your Amano machine at operating temperature to confirm print density and scan reliability before the order ships.

How do you measure a ticket or roll to confirm compatibility?

Accurate measurement takes less than five minutes with the right tools and eliminates the most common ordering errors.

  1. Measure ticket width with digital calipers at the center of the ticket. Record in both inches and millimeters. Target: 2.125" (54 mm) ±0.5 mm.
  2. Measure ticket length along the long axis. Target: 3.375" (85 mm) ±0.5 mm.
  3. Measure ticket thickness at the edge with calipers. Target: .007" (.188 mm) ±.001".
  4. Measure roll width at the roll face. Should match ticket width exactly.
  5. Measure core inner diameter by inserting calipers into the core bore. Target: 1" (25.4 mm) ±0.5 mm.
  6. Measure roll outer diameter when full. Compare to your dispenser housing’s maximum clearance.

Tolerance checklist before loading:

  • Width within ±0.5 mm of 54 mm
  • Length within ±0.5 mm of 85 mm
  • Thickness between .006" and .008"
  • Core bore between 24.9 mm and 25.9 mm
  • Roll OD does not exceed dispenser housing maximum

To find throat and spindle specs for your specific Amano model, open the machine’s service manual and go to the Specifications or Media Requirements chapter. The throat width and spindle diameter are listed there, typically in a diagram labeled “Ticket Path” or “Dispenser Assembly.” If the manual is unavailable, the model number on the machine’s data plate can be used to request the correct datasheet from Amano’s support resources or from a supplier like Caymil.

Pro Tip: When ordering custom-printed tickets, confirm the barcode print area starts at least 3 mm from any ticket edge. This margin prevents the dispenser’s feed rollers from obscuring the barcode during transit through the machine.

What ordering and customization options should you specify?

Most facilities fall into one of two ordering patterns: stock plain thermal rolls for standard entry/exit dispensers, or custom-printed tickets for valet, branded, or barcoded applications.

Caymil’s machine-issued ticket options cover both paths, with customization features including sequential numbering, barcode type and placement, logo bleed area, security features, and multi-part carbonless formats. When specifying a custom order, provide these parameters:

  • Exact ticket width, length, and thickness (use your caliper measurements)
  • Core inner diameter and preferred roll outer diameter
  • Barcode symbology (Code 39, Code 128, QR, etc.) and placement zone
  • Sequential numbering start point and format
  • Logo placement and any required safe-zone margins
  • Number of parts for carbonless formats (2-part, 3-part, or 4-part)

For barcoded valet parking tickets, specifying the exact barcode position relative to the ticket edge is the single most important customization detail. A barcode that shifts even 2 mm from run to run creates inconsistent scan results in automated lanes.

Caymil stocks Amano-compatible media and can supply dimensional samples before a full production run. For roll-format media, roll ticket specifications give operators a useful reference for matching core sizes and roll lengths across printer-compatible formats.

Pro Tip: Order a sample carton of a small number of tickets before committing to a full production run. Run the sample through your Amano machine for a full shift to confirm feed reliability, print quality, and barcode scan rates before the bulk order ships.

How do wrong dimensions cause jams and scan errors?

Most Amano dispenser problems trace back to one of four root causes: wrong ticket width, wrong thickness, wrong core size, or unsuitable paper stock. Identifying which one is causing the issue takes a systematic approach.

Common symptoms and their likely causes:

  • Frequent jams at the throat: ticket width too wide (over 54.5 mm) or thickness over .008"
  • Misfeeds or skipped tickets: ticket width too narrow (under 53.5 mm) or core bore too large, causing roll wobble
  • Faint or uneven printing: wrong paper type (bond stock in a thermal-only machine) or thermal coating on the wrong side of the roll
  • Barcode read failures: low print contrast, barcode too close to edge, or thermal fading from improper storage

Troubleshooting steps:

  1. Remove the roll and measure width and thickness with calipers.
  2. Check that the thermal coating faces the printhead (shiny side toward the head in most Amano units).
  3. Inspect the core for cracks or deformation that could cause wobble.
  4. Verify roll OD does not exceed the dispenser housing clearance.
  5. Check storage conditions: rolls stored above 77°F or in direct sunlight can pre-activate thermal coatings.

For dispenser-format media, dispenser spitter tickets designed to the correct throat dimensions significantly reduce jam frequency compared to generic cut-sheet substitutes.

Pro Tip: Store thermal rolls in a sealed bag at room temperature, away from direct sunlight and heat sources. Rolls stored in a hot vehicle or near a boiler room can develop partial activation across the coating before they ever reach the machine.

Specs cheatsheet for Amano-compatible ticket media

Keep this table in your service kit or share it with your supplier when ordering replacement stock.

The core inner diameter is the measurement operators most often overlook. A spindle bore that is even 1 mm too tight will resist loading under time pressure; one that is too loose allows the roll to drift sideways, producing skewed tickets and jams. When in doubt, measure the spindle on your machine directly and match the core to it.

Keep at least one spare confirmed-fit carton on site at all times. A typical Amano carton at standard dimensions gives most facilities a comfortable buffer against supply delays.

How do you confirm compatibility with a specific Amano model?

Not every Amano machine uses identical throat and spindle dimensions. The AGP-2000 series is the most widely referenced, but legacy models and the Amano ONE platform may carry slightly different housing tolerances.

Compatibility checklist:

  • Locate the model number on the machine’s data plate (usually inside the housing door or on the rear panel)
  • Open the service manual’s Specifications chapter and find the “Ticket Media” or “Dispenser” section
  • Note the listed throat width, spindle diameter, and maximum roll OD
  • Compare those figures to your ticket stock measurements
  • Cross-reference the Amano part number (e.g., ATD-106900 for the Standard 3" Ticket spec) to confirm you are ordering the correct media family

For model-specific datasheet access, the Amano AGP-2000 specifications document is the primary reference for the AGP-2000 series. Caymil’s Amano parking system overview covers model differences and helps operators identify which ticket family applies to their installation.

Useful reference sources:

  • Amano AGP-2000 Series Specifications PDF (pages 1 and 10) for canonical dimensions and carton counts
  • Caymil’s Amano machine tickets resource for supplier-side stock and ordering options
  • Your machine’s service manual for model-specific throat, spindle, and housing dimensions

What operators get wrong about ticket dimensions

The most common ordering mistake is treating ticket width as the only dimension that matters. Width is the first check, but thickness is what causes the most service calls. A ticket that is .001" over the accepted range will feed perfectly for the first few hundred cycles, then begin jamming as the dispenser mechanism warms up and tolerances tighten. By the time the problem is visible, the facility has already loaded a full carton.

Hands measuring ticket thickness with calipers

The second most frequent error is ignoring core size. Operators often order replacement rolls based on width alone, then discover the core bore is 1.5" instead of 1", which fits loosely on a 1" spindle and causes lateral drift within a few hundred tickets. Labeling each replacement carton with the confirmed model compatibility, core size, and ticket dimensions before it goes into storage takes thirty seconds and eliminates that confusion entirely.

The field practice Caymil consistently recommends: request a dimensional sample before any new supplier relationship, run it for a full shift, and only then approve the bulk order. Decades of supplying Amano-compatible media have shown that a single confirmed-fit sample prevents far more downtime than any post-delivery troubleshooting.

Caymil supplies confirmed Amano-compatible ticket media

Getting the right ticket stock the first time is faster and less expensive than diagnosing a jam mid-shift. Caymil has manufactured and supplied Amano-compatible parking tickets since 1937, stocking the canonical 2 1/8" × 3 3/8" × .007" format with correct 1" core sizing and offering full customization: sequential numbering, Code 39 and Code 128 barcodes, logo placement, security features, and multi-part carbonless formats.

Caymil

Operators can request a dimensional sample before committing to a full carton. Caymil ships nationwide with fast turnaround on both stock and custom orders. Browse the full range of parking forms and ticket products or go directly to machine-issued ticket options to specify your exact dimensions and customization requirements. Send your caliper measurements and model number, and Caymil’s team will confirm compatibility before the order goes to production.

Useful sources

FAQ

What are the standard Amano ticket dimensions?

The standard Amano ticket measures 2 1/8" (54 mm) wide × 3 3/8" (85 mm) long × .007" (.188 mm) thick, as specified in the Amano AGP-2000 Series documentation. Cartons are typically packed at 5,000 tickets.

What core size do Amano ticket rolls use?

Most Amano dispensers use a 1" (25.4 mm) inner diameter core. Measure your machine’s spindle directly with calipers before ordering, since a loose or tight core fit causes lateral drift and misfeeds.

What paper type should Amano tickets be printed on?

Thermal ticket stock is the standard for Amano ONE and AGP-2000 series machines, requiring no ink ribbon. Bond paper works for facilities needing long-term record retention but requires a compatible printing mechanism.

How do I prevent jams caused by wrong ticket dimensions?

Measure ticket width, length, thickness, and core bore with digital calipers before loading any new stock. Reject rolls where width falls outside 53.5–54.5 mm or thickness outside the recommended range, as either condition causes chronic misfeeds.

Does Caymil supply Amano-compatible ticket stock?

Yes. Caymil stocks and manufactures Amano-compatible tickets in the canonical 2 1/8" × 3 3/8" × .007" format with 1" core sizing, and offers customization options including sequential numbering, barcodes, and logos.
